Displaying Images From A Database

Author: Bryan Ashcraft
Author's Site: Paragon Visuals
Reference ID: 15618

The Setup

This is the most important step. Without the proper setup all kinds of problems can (and probably will) occur.

This tutorial will assume that you know how to create a database, setup an ODBC connection to the database and connect a site to this database in UltraDev. Therefore I will only cover one very important aspect in your database creation process. For more information about Database Connections see:

ADO Connections
by Tom Muck
URL: http://www.basic-ultradev.com/articles/ADOConnections/

Special Note: All images used in this tutorial's DB and resulting display page (obviously), were graciously provided by Dan Short. Thanks Dan!

The Database

First off, I will not be storing the actual images in the database. I will be storing *paths* to the images in appropriately named fields within the database instead.

1. It keeps the database smaller.


2. It makes for easier maintenance when used for menu systems. I.E. If you change the way your buttons look simply overwrite the existing images via FTP and you're done. No need to change the database at all.

You will need to do some planning in advance of creating your database. If you only plan to use results of the database query on one page (or all pages will be in the same directory) then you can use document relative paths to the images in your database. But, if you want to use the results displayed on multiple pages in different directories (such as with a menu system) then you will need to use root relative paths.

Here is the database set up I will use for this tutorial:

Remember: The database query will place the path to the image on the page. Not the image itself!

Setting Up The Query

Now that we have the database and connections setup lets see how to query the database to display the desired results.

First we setup the query by opening the Server Behaviors panel (Window» Server Behaviors or CTRL+F9 in Windows, CMD+F9 on a Mac) and selecting the Recordset (Query) from the drop down menu.

::View Full Image::

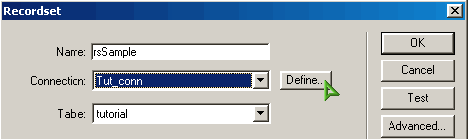

Next we need to name our recordset, select the database, table, fields to display, along with any filtering or sorting properties.

::View Full Image::

Displaying The Results - The Images

Now that our query is set up we are ready to use it to display our results.

We start by creating a table with 1 row and 2 columns. I set the table width to 600px. In the first column we insert an image, as usual, by selecting Insert Image from the Object Panel, or choose Insert» Image, or CTRL+ALT+I.

First we need to change the Select File Name From to Data Sources. Then we select the field that contains the path to our image(s), which is sImage in our database.

::View Full Image::

The next step will be to set the width, height, and name attributes of our images.
